Tiny Alexmos brushless gimbal controller - 3 axis/32bits with 2 IMUs

Tiny Alexmos brushless gimbal controller - 3 axis/32bits with 2 IMUs

Price: 159,00€

Price without tax: 131,40€
Quantity:
Available in our stock


AltiPointsYou'll win 185 AltiPoints by buying this article.
  • Model: 3AXIS-ALEXMOS_SBGC32TB (42763)
Description

This is the official BaseCam SimpleBGC Tiny B 3 axis 32bits brushless gimbal controller. This board comes ready-to-use with the firmware pre-loaded. Of course this can be upgraded via the BASECAM software (GUI).

Thanks to the SimpleBGC firmware, this system offers a superior quality stabilization and the 32bits add an even higher precision .

The two IMUs (Inertial Measurement Unit) boards are mounted on the mobile part of the gimbal and detects at high speed the camera's movements. Thanks to the second IMU (included in this kit) the stabilization precision reaches unprecedented levels.

The result is immediate and the stabilization very fast, which provides images like never before.


Technical specifications

  • Size: 40 mm x 25 mm
  • Weight (without IMUs): approx. 7 gr
  • Input voltage: 3.7V - 25V
  • Maximum motor current: 1A
  • 5V/1A output for accessories


Scope of delivery

  • 1x Brushless motor gimbal stabilizer with two IMUs


Links


Notes

  • This stabilizer requires some specific knowledge to be tuned. Please be sure having the necessary skills to set up this board before purchasing it.

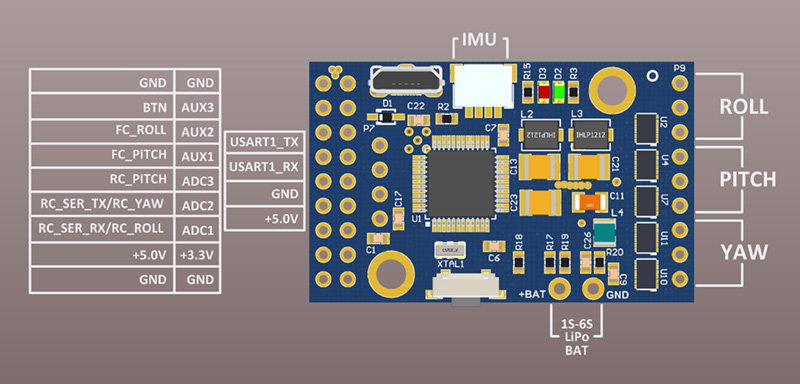

Wiring
