TF03 Rangefinder (180m)

TF03 Rangefinder (180m)

Price: 249,00€

Price without tax: 205,79€
 Temporarily out of stock

To be notified when this product is back in stock please complete the form here below.



AltiPointsYou'll win 290 AltiPoints by buying this article.
  • Model: RANGEFINDER_TF03 (42668)
Description

TF03 is a compact and ultra efficient LiDAR rangefinder. It is adapter for drones requiring laser altimeter for example. More generally, TF03 is suitable for applications requiring a laser rangefinder.

With a range of 180m, TF03 is ideal for drones having weight, size and power consumption constraints. Regarding terrain following, TF03 has 4 echoes in order to provide more accuracy in the readings.

In addition to that, TF03 can be upgraded thansk to a USB to TTL converter. This LiDAR rangefinder can be configured in many ways: MAVLINK protocol, baud rate, output frame rate, etc. TF03 has a IP67 protection case that has screwing holes for easy integration (see below).


Technical specifications

  • Weight: 74 gr
  • Range: 180 m (@90% reflectivity) / 70 m (@10% reflectivity)
  • Wavelength: 905 nm (class 1)
  • Resolution: 1 cm
  • Accuracy: ± 5 cm (within 10 m) / 0.5% (beyond 10 m)
  • Repetead accuracy: 3 cm

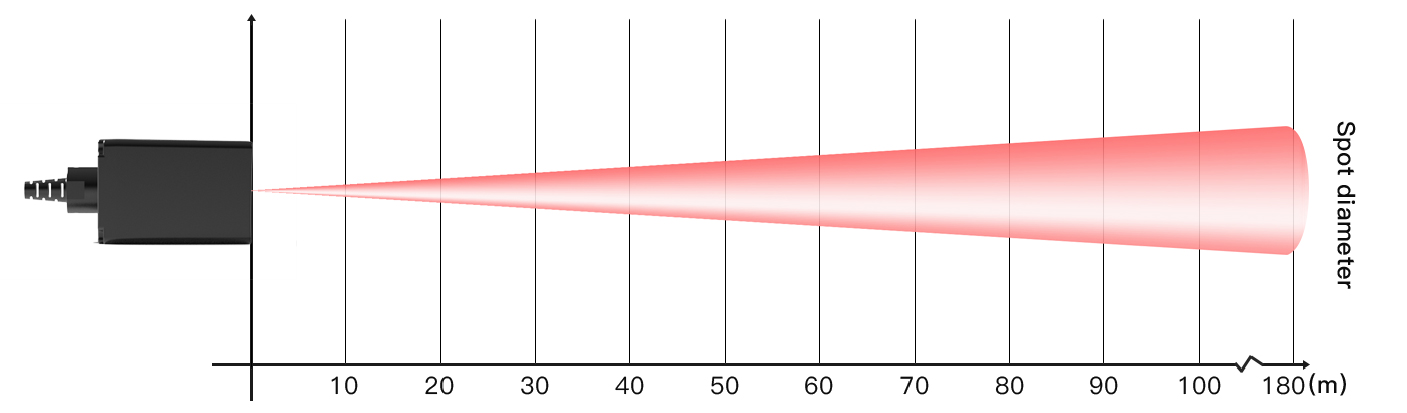

  • Detection angle: 0.5°
  • Echoes: 4
  • Output frame rate: 100 Hz - 1000 Hz
  • Light sensitivity: 100 Klux
  • Output: UART (TTL) and CAN
  • Protocols: Standard, Mavlink, IO
  • Power to supply: DC 5V (300 mA)
  • Power consumption (max): 1,2 W
  • Size: 44 x 42 x 29 mm
  • Operating temperature: -25 ... +60°C
  • Protection: IP67
  • Certificats: CE, FCC, RoHS et FDA


Scope of delivery

  • 1 x TF03 Rangefinder (180m)


Links


Notes

  • A USB to TTL converter is necessary to configure it using a computer.

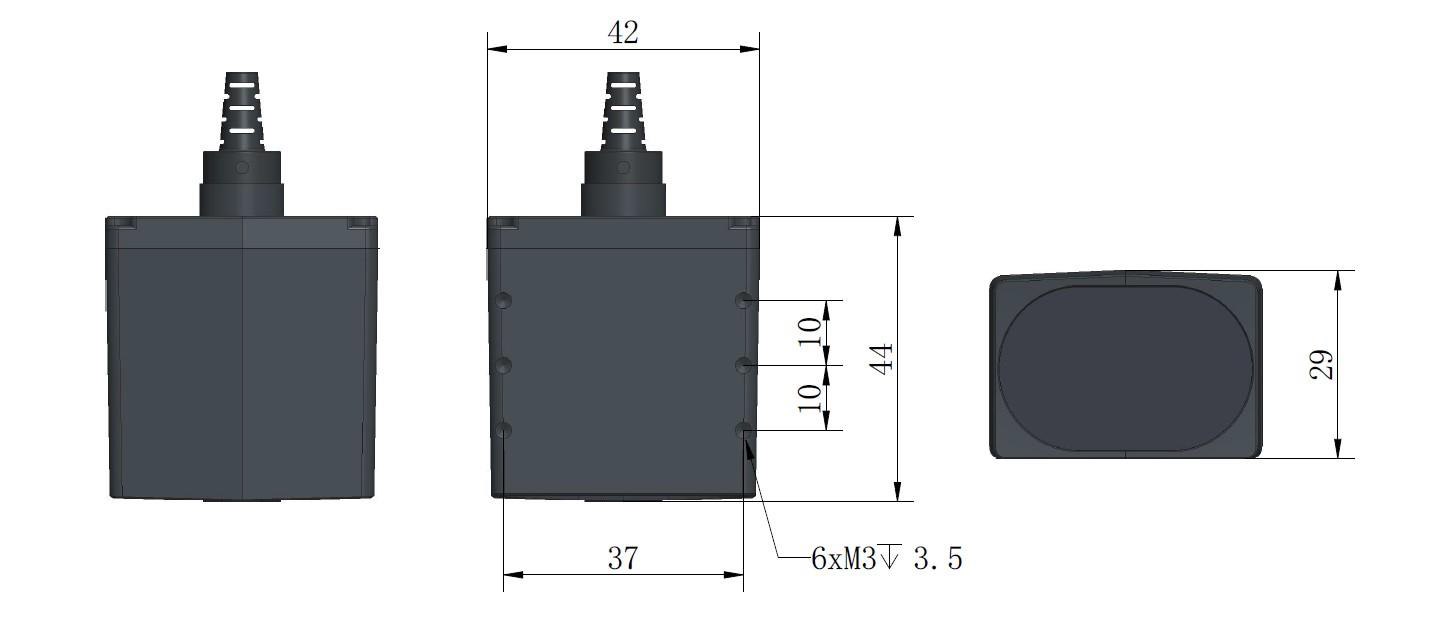

Size
