Sony shutter cable for multiport (up angled)

Sony shutter cable for multiport (up angled)

Price: 14,95€

Price without tax: 12,36€
 Temporarily out of stock

To be notified when this product is back in stock please complete the form here below.



AltiPointsYou'll win 17 AltiPoints by buying this article.
  • Model: SHUTTERCABLE_SONY_ANGLED_UP (42299)
Description

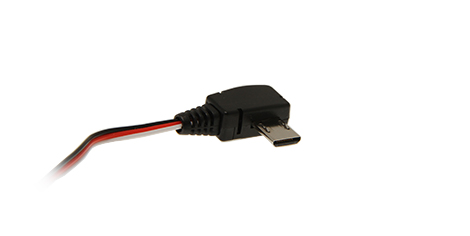

This is a small circuit (pre-assembled) with Multi socket up angled to trigger Sony cameras like the following: A5000, A5100, A6000, A7, A7R, RX100 I, RX100 II and RX100 III.
The Shuttercable can be connected to one of the transistor outputs of the FlightCtrl through a switch operated via a servo output, the optocoupler part of this shutter, our Multifuntions Camera control board or our StratoSnapper 2.

To shut, you just need to connect together the "shutter" (red) + the "focus" (white) and the "ground" (black) wires (see picture below).

In order to use this cable with the standard shutter on an output of the MikroKopter Flight-Ctrl, you need to connect:

1. the red wire and the white wire of this Sony shutter on the "Out+" connection of the standard shutter
2. the black wire of this Sony shutter on the "Out-" connection of the standard shutter


Technical specifications

  • Length: 20cm


Scope of delivery

  • 1 Cable


Notes

  • This cable is not made to operate directly connected to a radio-controlled receiver output, nor to any other component working with PPM/PWN signal.
  • This cable is a shutter (for shooting pictures). It is not foreseen to start or stop the video, nor to vary the zoom.
