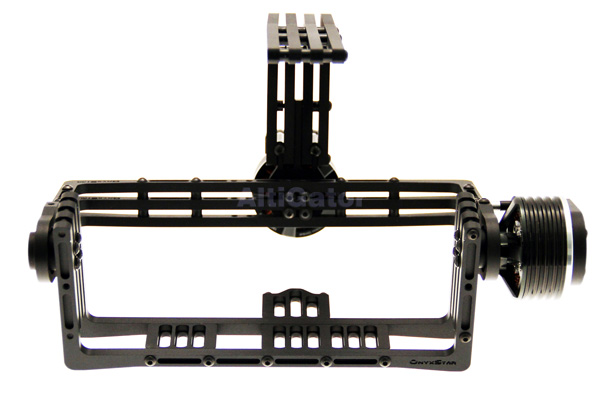

OBG-1800U 2 axis brushless camera mount

OBG-1800U 2 axis brushless camera mount

Available in our stock

  • Model: OBG-1800U-2-AXIS_ALEXMOS (41962)

Very lighweight (ca. 880g / 1.94 lbs), the new OnyxStar® OBG-1800U gimbal is made of aluminum alloy type 6061-T6 (used for aviation).

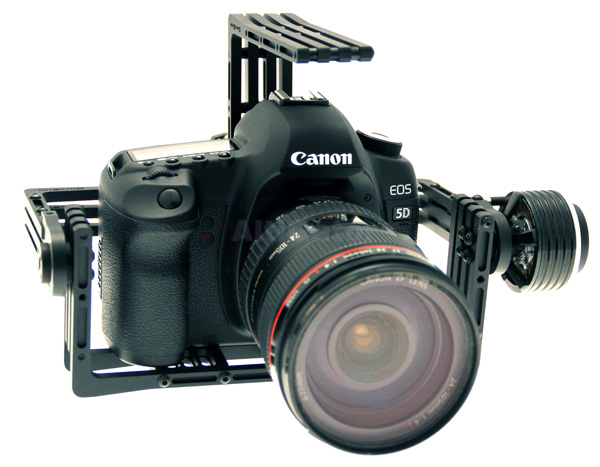

This 2-axis brushless camera mount is designed for the Canon 5D or 7D, Nikon D7100 with long lens or equivalent.
Extremely robust, it is foreseen with sliders allowing an easy center of gravity tuning. It comes already assembled and tuned with its Alexmos 2-axis stabilization board.

This camera mount can easily be installed on any frame that has a sufficient space to integrate it like MikroKopter®.

Technical specifications

  • Material: anodized aluminum - type: 6061-T6
  • Color: black
  • Weight (approx.): 880 gr (1.94 lbs) including the motors and the stabilization board
  • Dimensions (W x D x H): approx. 260 x 160 x 150 mm (102 x 63 x 59 in)
  • Maximum width of the camera: 150 mm (59 in)
  • Maximum depth of the camera (incl. lens): 170 mm (67 in)
  • Maximum height of the camera: 115 mm (45 in)
  • Accepted camera weight: up to 1800 gr (3.97 lbs)
  • AlexMos stabilization board 32bits

Scope of delivery

  • One OnyxStar® OBG-1800U gimbal with its 2 motors and stabilization board



  • The camera shown with the gimbal is not delivered with the kit.
  • We recommend you to take into account your lens dimensions and weight.

Examples of cameras

  • Canon 5D
  • Canon 7D
  • Nikon D7100
  • etc
