T-Motor U3-700KV  - multirotor special

T-Motor U3-700KV - multirotor special

Price: 89,00€

Price without tax: 73,55€
Quantity:

Max: 16
Available in our stock


AltiPointsYou'll win 104 AltiPoints by buying this article.
  • Model: T-MOTOR_U3 (41449)
Description

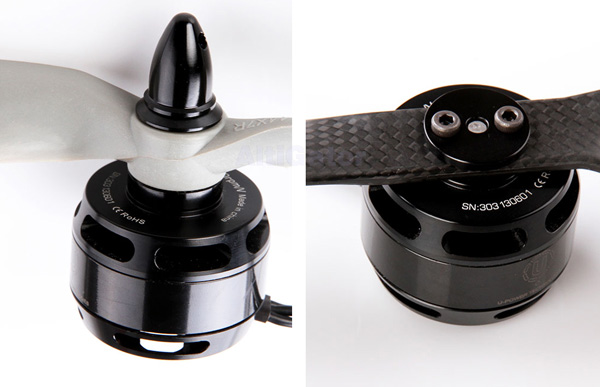

This motor is a high torque brushless motor especially developed for multirotors aircrafts.

The U3 is foreseen with long cables (approx. 60cm) and a short shaft in order to perfectly fit on the great majority of frames like MikroKopter, Droidworx, OnyxStar or Aero-Tek.

Thanks to it's high torque this motor is capable of driving big propellers with a high level of efficiency.

The U3 is delivered with connectors already soldered on the cables.



Technical specifications

  • No-load speed: 700rpm/V
  • Voltage: 3-4S (LiPo)
  • Load current max. (180S): 25A
  • Power max. (180S): 500W
  • Short shaft
  • Propeller mount diameter: 6mm
  • Long cables (approx. 60cm)
  • Weight : 97gr (approx. without the cables)

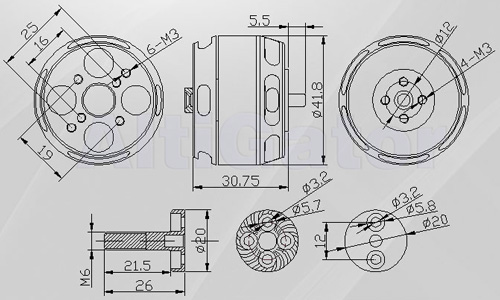

  • Dimensions (d x h): 41.8 x 30.75 mm
  • Propellers to use: from 11" to 14"
  • Distance between assembly holes: 19mm, 25mm and 16mm
  • Connectors already soldered

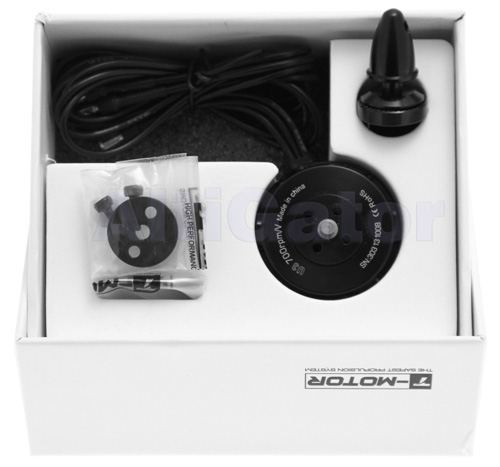

Scope of delivery

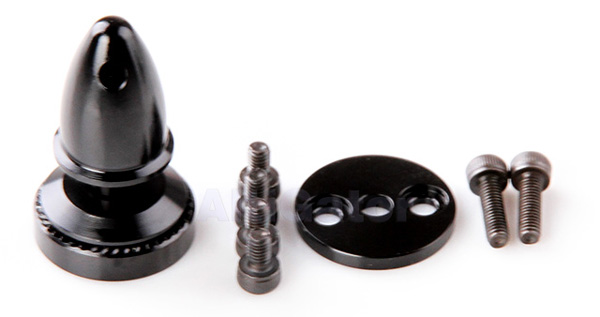

  • 1 Motor with its propeller mount
