Lipo Saver

Lipo Saver

Price: 19,95€

Price without tax: 16,49€
Quantity:

Max: 2
Available in our stock


AltiPointsYou'll win 31 AltiPoints by buying this article.
  • Model: LIPO_SAVER (40851)
Description

Lipo-Saver for 3 and 4-cell Lipos used with a simple connection to the balancer connector of the battery

If you want to use a Lipo to supply a device like a video monitor, camera or transmitter, you'll face the undervoltage warning problem.

So in case that you leave your battery connected for too long, the Lipo will be totally discharged and would be damaged. The Lipo-Saver is the right solution to that problem.

The LipoSaver:

  • Warns you when your battery reaches the low voltage level
  • Switches off the power automatically when the voltage drops under a low limit
  • Simply connects to your Lipo via the balancer connector
  • Configurable to be used with 3S or 4S batteries

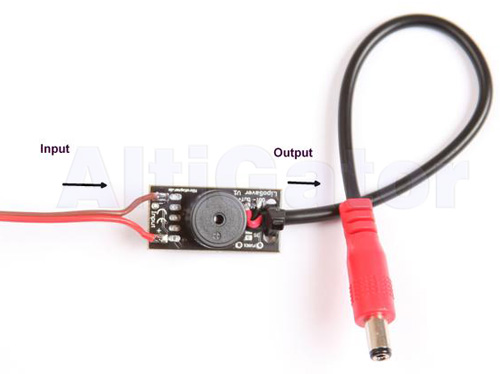

Assembly example (the red plug shown in the above picture is not included in the kit)


Technical specifications

  • Voltage range 4s: Warning below 13,5V, Switch off below 12,5V
  • Voltage range 3s: Warning below 10,5V, Switch off below 9,4V
  • Power consumption: approx. 3 mA
  • Max. current consumtpion: approx. 5 A
  • Dimensions: 70 x 80 x 12 mm


Scope of delivery

  • 1 PCB LiPoSaver
  • 1 Cable tie
  • 1 Pin row to solder
