Dualsky 5010GBD motor for brushless gimbal (with encoder)

Dualsky 5010GBD motor for brushless gimbal (with encoder)

Price: 89,00€

Price without tax: 73,55€
 Temporarily out of stock

To be notified when this product is back in stock please complete the form here below.



AltiPointsYou'll win 104 AltiPoints by buying this article.
  • Model: GIMBAL_DUALSKY_5010GBD (42659)
Description

This motor belongs to the Dualsky GBD gimbal motor family. Cutting-edge, it has an integrated encoder.

Dualsky GBD motors are made to be driven by Alexmos SBGC32 gimbal controllers via I2C.

The encoder embedded in the Dualsky 5010GBD greatly imrpoves the motor precision.

Maximum handeld weight: 2 Kg


Technical specifications

  • Encoder: 14bit magnetic position sensor
  • Configuration: 24N28P
  • Torque: 0.27N/m @ 10V - 0.4N/m @ 14.8V
  • Max handled weight: 2 Kg
  • Max voltage: 25V
  • Wire OD: 0.25 mm
  • Turns: 60
  • Weight (approx.): 144 gr
  • Resistance: 10.7 Ω


Scope of delivery

  • 1 x Motor with integrated encoder

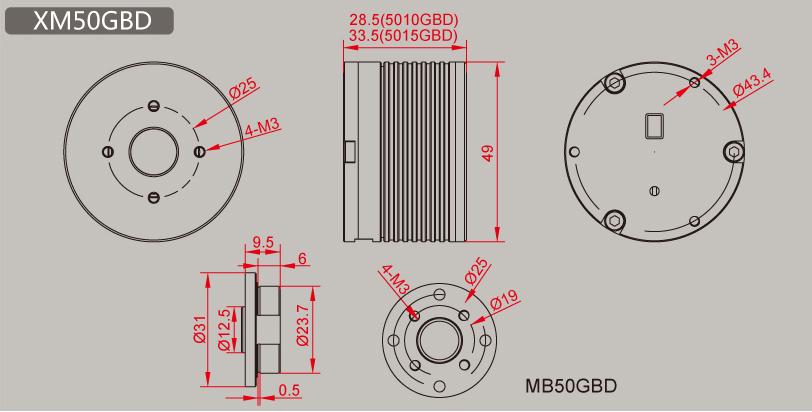

Diagram
