1.3GHz FPV wireless video transmitter-receiver - 1000

1.3GHz FPV wireless video transmitter-receiver - 1000

Price: 159,00€

Price without tax: 131,40€
Quantity:

Max: 2
Available in our stock


AltiPointsYou'll win 185 AltiPoints by buying this article.
  • Model: 1.3_VIDEO_TX_RX_1000 (40716)
Description

This transmitter/receiver is a perfect solution for FPV flying but also for photo/video shooting control.
Among its advantages, its low weight and size will facilitate the installation on your aircraft.
By using the 1.3GHz band, it will allow you to fly with an optimal range.

TX settings: Each dip switch stands for one channel, from left to right, the frequency is 1240, 1280, 1320, 1360Mhz


Technical specifications

  • Frequency band: 1.2/1.3GHz
  • Number of channels: 4 (1240MHz, 1280MHz, 1320MHz, 1360MHz)
  • Transmitter weight (without the antenna): 26  gr
  • Voltage: 12V
  • Current: 300mA
  • Antennas: 3db
  • Antenna connector: SMA
  • Video and audio out
  • Dimensions of the TX: 50 x 41 x 14mm
  • Output power: 1000mW

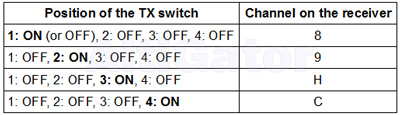

Channels tuning:


Scope of delivery

  • 1 Transmitter
  • 1 Receiver
  • 1 Transmitter antenna
  • 1 Receiver antenna
  • Cables and connectors


Notes

  • Please pay attention to not power up the transmitter module without the antenna mounted on it, otherwise it risks to be destroyed and this will not be covered by any warranty.
  • The transmitter of this kit must be installed in an air flow in order to be cooled. It should never be used on the ground without cooling otherwise it risks to be destroyed.
  • Purchasing and using this material is not allowed in several countries. In some cases, it requires a license, in some other cases it is simply forbidden. In case of doubt, please do not purchase this material.
